Description

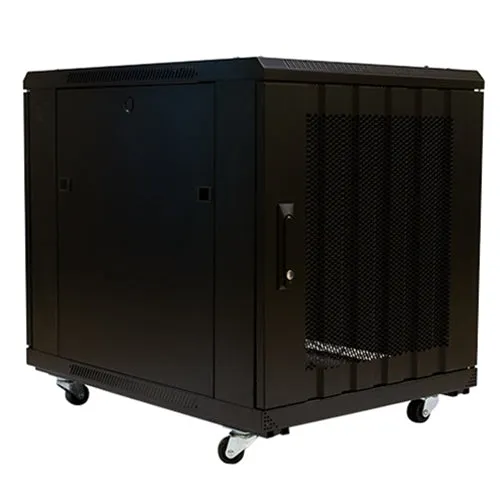

SOHO Remote Office Cabinet
SOHO / Remote Office Cabinets are specifically designed for small offices and remote locations where space is a premium. Fully assembled and ready to deploy, they include all the features of a full-size server cabinet, conveniently sized to fit under or on top of a desk or counter.
With a maximum rail depth of 29.5", these cabinets are capable of storing servers, networking switches, and a variety of other security and AV equipment, while high-flow vented doors provide passive cooling to keep equipment from overheating.
Features
Features
- Sized to fit under a desk or counter
- Server depth
- High-flow vented doors
- Locking doors and side panels
Security & Protection
- Locking door and side panels prevent unauthorized access to equipment
- Two sets of rails provide a stable mounting structure
- Doors and side panels are grounded to the cabinet frame
Flexibility
- Includes both casters and adjustable leveling feet for both fixed and mobile installations
- Multiple cable entry slots provide greater flexibility during installation
- Mounting rails are adjustable in 3/4" depth increments to match a variety of equipment sizes
- Front door, rear door and side panels are all removable for convenient access to equipment
High Capacity
- Available in three sizes to fit in a variety of environments where space is limited
- Deeper than a wall cabinet - 29.5" maximum rail depth can handle servers and other large equipment
- Robust design can support 1,500 lbs. of equipment
Specifications
Specifications
8U
12U
24U
|
Product Material |
SOHO / Remote Office Cabinet |
|
Frame Material |
Heavy Gauge Cold Rolled Steel |
|
Finish |
Black Powder Coat |
|
Dimensions (H x W x D) |
(Height Varies By Item#) x 23.625" x 31/5" |
|
Rack Unit Quantity |
8U, 12U, 24U |
|
Front & Rear Door |
Removable, Reversible & Lockable High Flow Vented Steel, Opens Full 180º |
|
Side Panels |
Solid, Full Height, Removable & Lockable |
|
Top Panel |
(1) Vented Knockout For Optional Fan Unit, (2) Removable Cable Entry Slots Located at Front and Back |
|
Bottom Panel |
(5) 2.75" Wide Individually Removable Covers (Maximum 11" x 15" Opening), (2) Removable Cable Entry Slots at Front and Back |
|
Equipment Support |
Two Pairs of Mounting Rails, 1.75" RU Spacing, Marked & Numbered on Rails; 19" W, EIA-310-D Universal Vertical Hole Spacing, 10-32 Threaded Holes |
|
Grounding |
14 AWG Ground Wire Connects Doors & Side Panels to Cabinet Frame |
|
Stati Loading Capacity |
1,500 lbs |
|
Compliance & Standards |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
What's in the Box?
What's in the Box?
- Qty 1 - SOHO Server Rack
- Qty 4 - Adjusting Leveling Feet
- Qty 4 - Casters
- Qty 4 - Grounding Kits
- Qty 48 - 10-32 Mounting Screws
