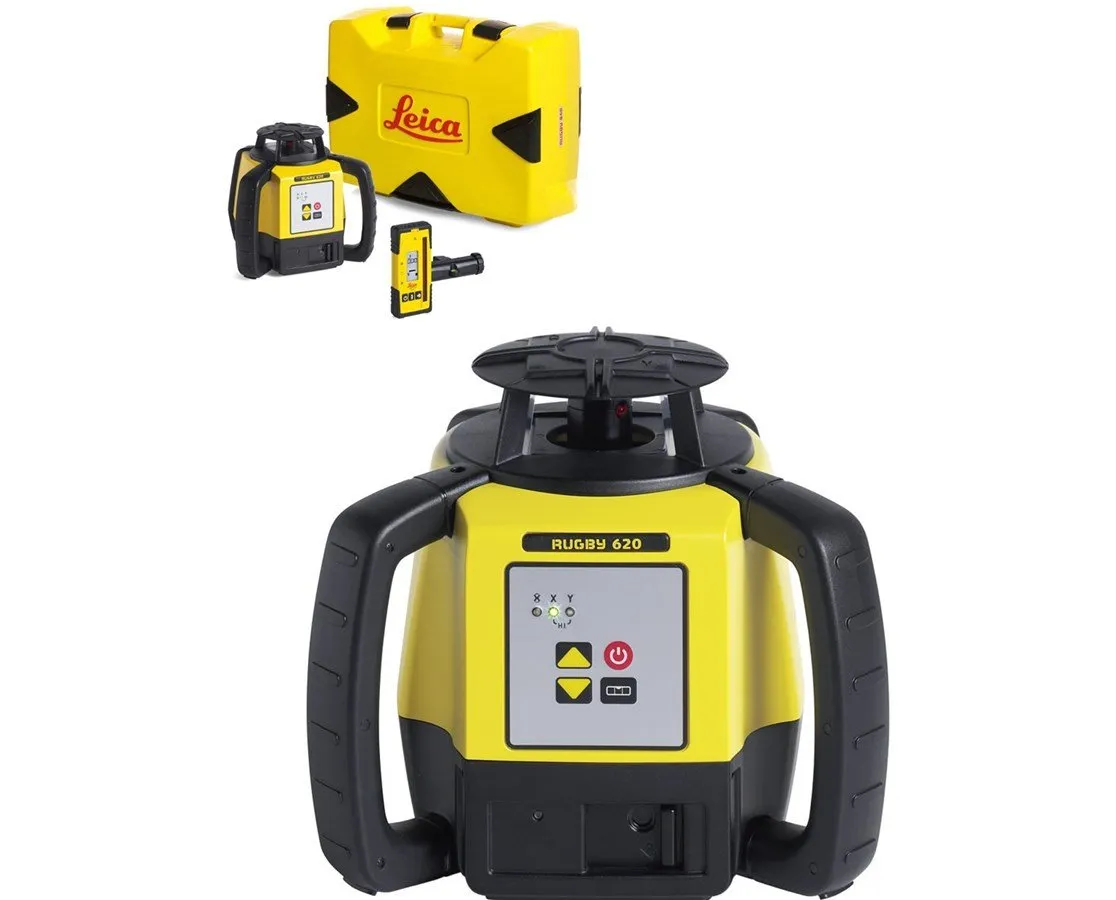

The Leica Rugby 620 Rotary Laser Level with Receiver & Recharge Kit
Receiver Options:
1.) 620 with RodEye 120 Receiver - Alkaline Only (LG6011152)
2.) 620 with RodEye 140 Receiver - Alkaline Only (LG6005983)
3.) 620 with RodEye 160 Receiver - Alkaline Only (LG6005985)

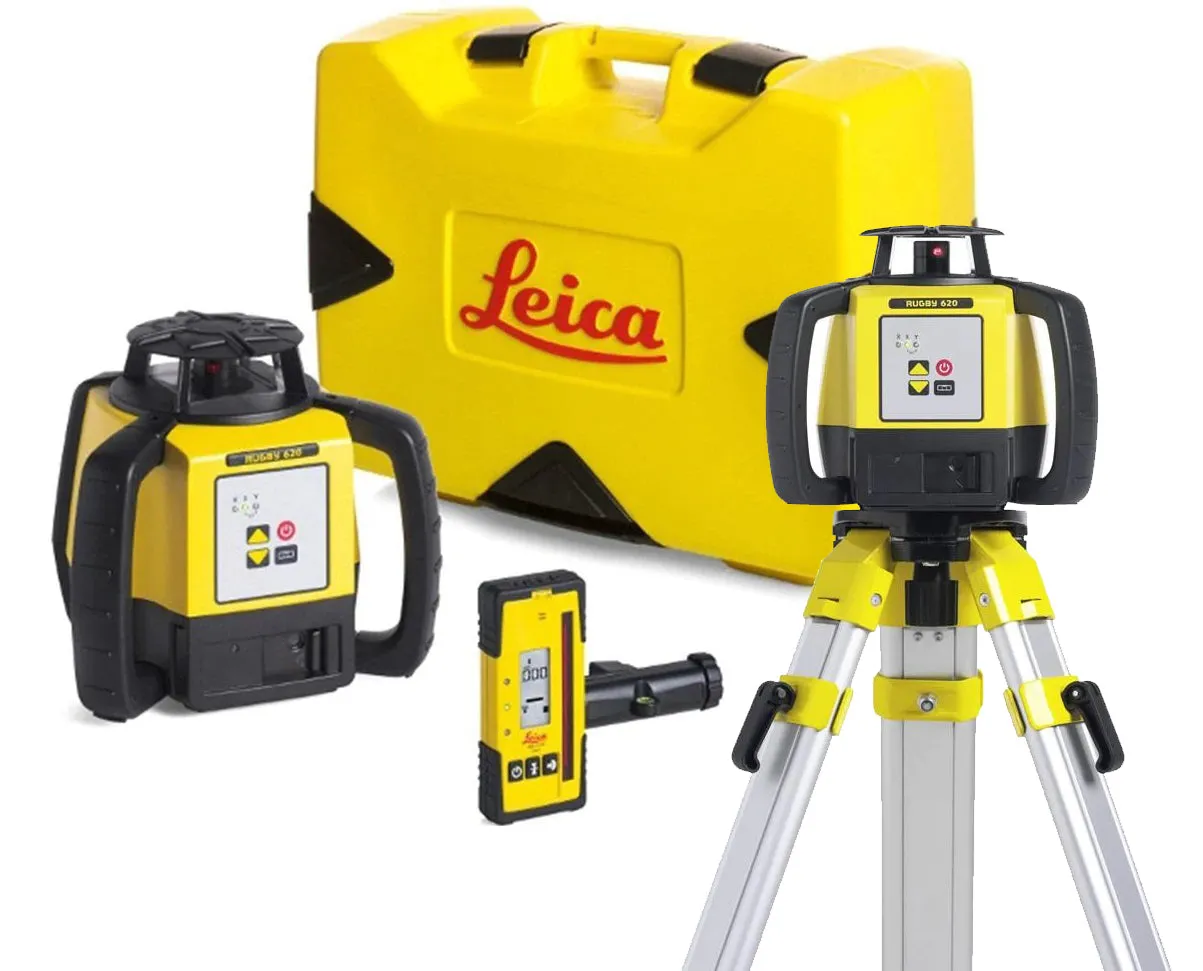

4.) 620 with RodEye 120 Receiver with Tripod & Staff (LG6011152KIT)
5.) 620 with RodEye 160 Receiver with Tripod & Staff (LG6005985KIT)

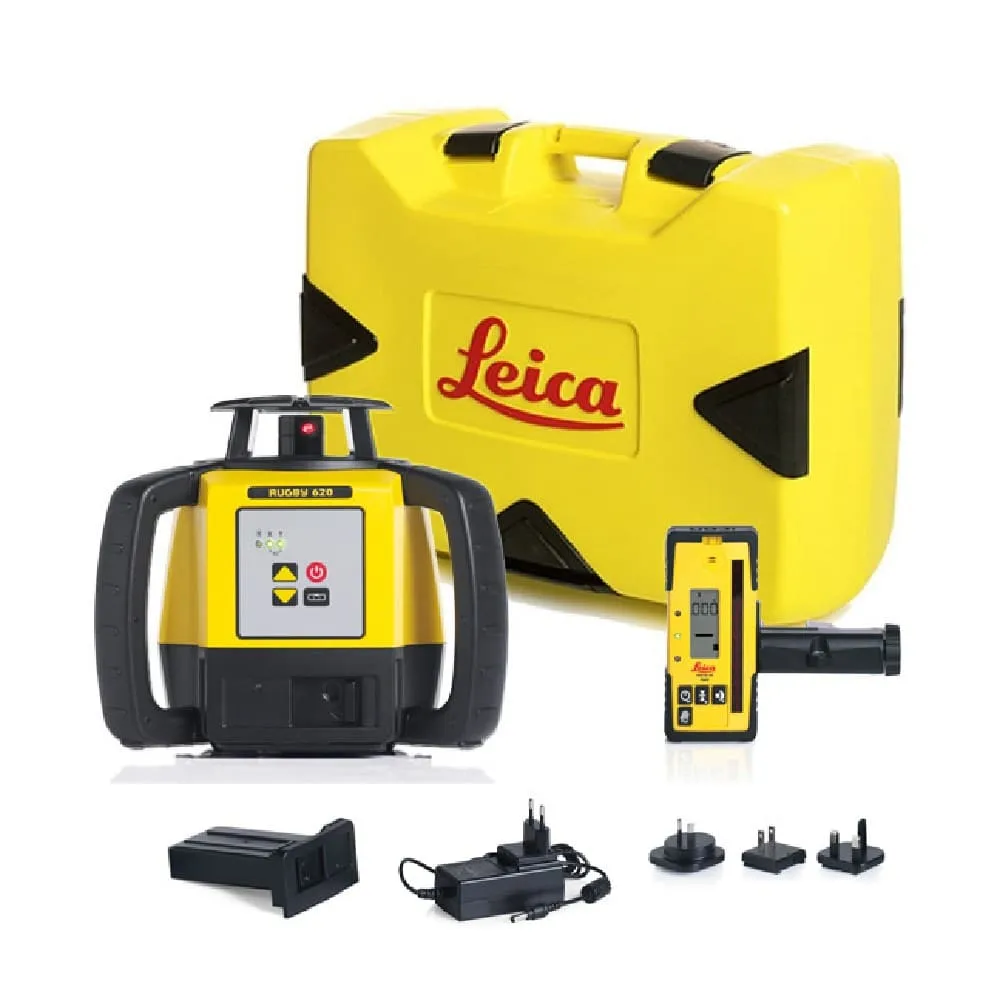

Recharge Kit Option
1.) 620 with RodEye 120 Receiver - Li-ion & Alkaline (LG6011152R)
2.) 620 with RodEye 160 Receiver - Li-ion & Alkaline (LG6005985R)
Leica Rugby 620 with RodEye Receiver Video

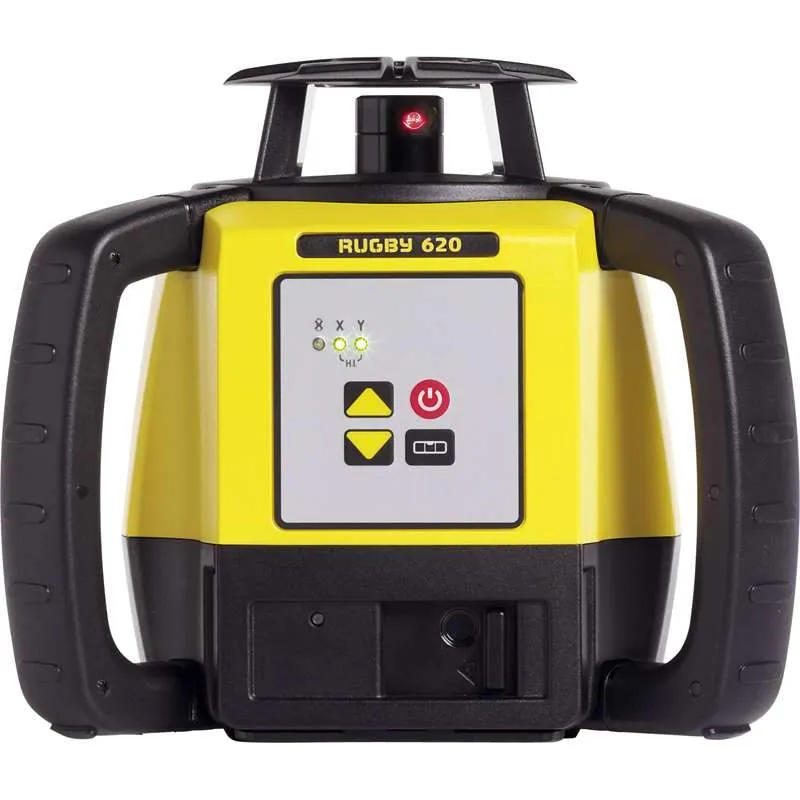

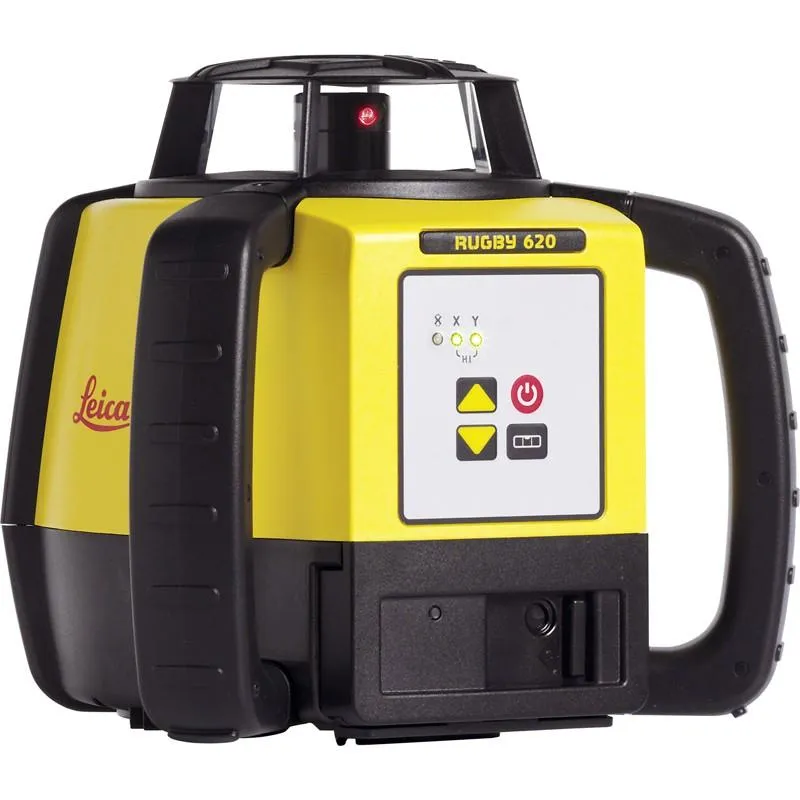

The Leica Rugby 620 Rotary Laser Level has all the great features of the Rugby 610 plus the addition of a manual slope option, an increased accuracy of ±1/16-inch at 100 feet, and improved range of up to 2,600 feet. It is also easy to use with its one-button self-leveling operation, grade entry arrows, and LED indicators for all general construction applications.

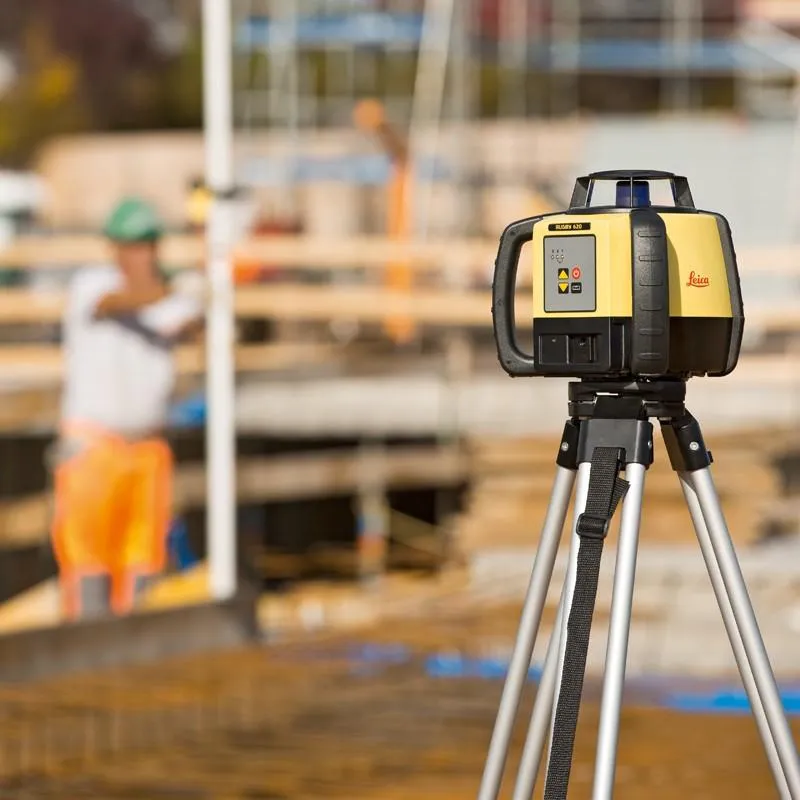

Self-leveling within ±5 degrees, the Leica Rugby 620 can perform all horizontal leveling tasks indoors or outdoors and is great for concrete and formwork. Construction professionals can also choose to turn off the laser's self-leveling function for single-axis manual grading. It comes with an easy-to-grip over-mold protection handles and clear LED indicators. Plus, the Rugby 620 uses a Class 2, 635-nanometer red laser.
With an IP67 environmental rating, this Leica rotating laser is dustproof and water resistant. With the included alkaline battery pack, the laser level can last up to 60 hours and 40 hours with the Li-ion rechargeable battery. In addition, the Leica Rugby 620 rotary laser level comes with a 5/8-11 thread for easy tripod attachment.
Leica Rugby Rotating Laser level Video
Features
- Range up to 2,000 feet with Rod Eye Basic
- ±1/16 inch accuracy at 100 feet
- Horizontal self-leveling within ±5 degrees
- Single-axis manual slope
- One-button operation
- LED indicator
- Rotation speed: 600 RPM (10 RPS)
- Class 2, 635nm red laser
- Over-molded handles
- IP67 dustproof and water resistant
- Up to 60 hours using 4 D-cells alkaline

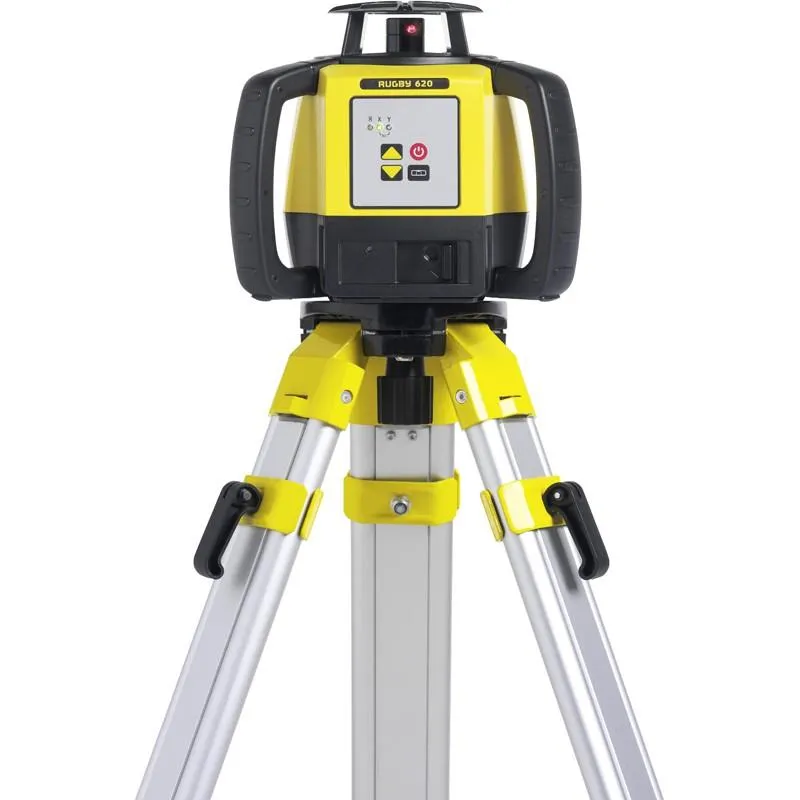

- 5/8-11 tripod thread

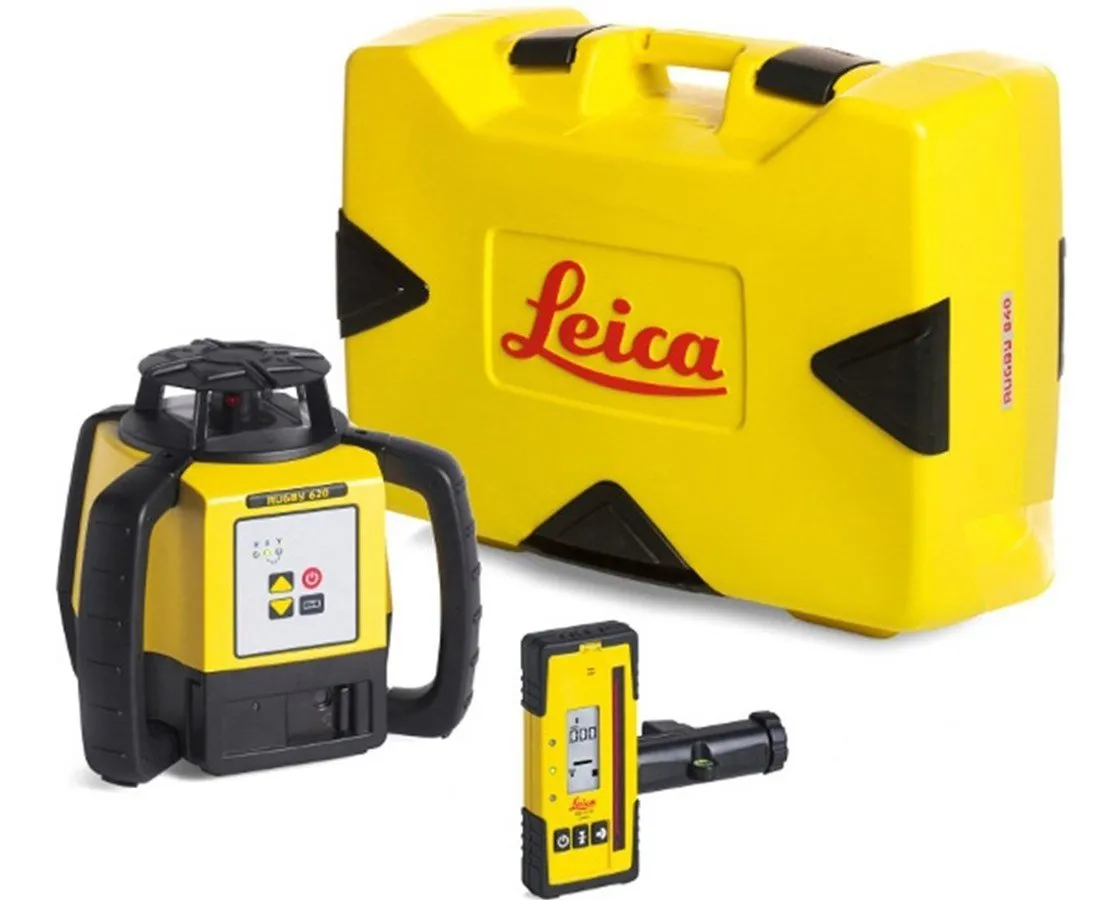

Includes
- Carry case

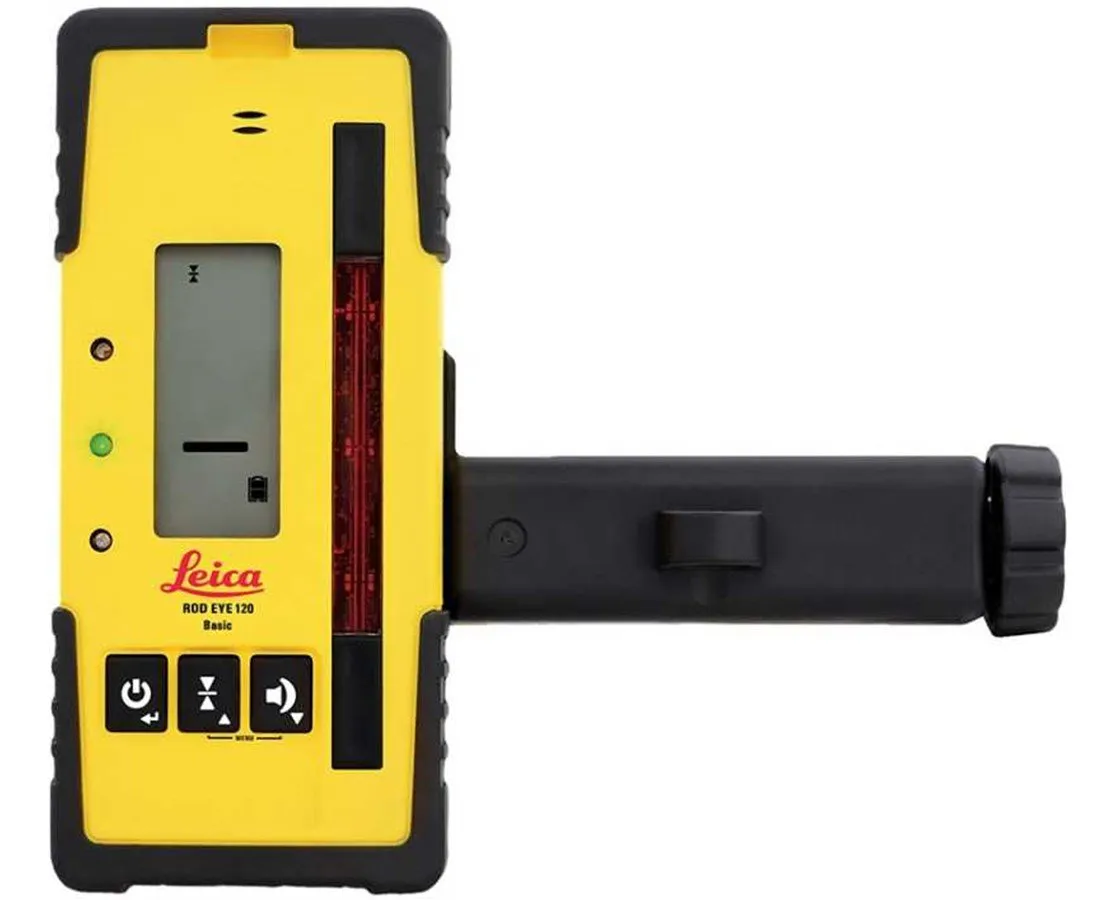

- RodEye 120 Receiver and bracket
- Alkaline batteries
- Instructions
- Self levelling, horizontal, dual axis manual grade laser
Specifications
| Laser | |
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 2 |
| Direction | Horizontal |
| Visibility | Visible |
| Range | |
| Working Diameter | up to 2,900 ft |
| Detection Window | 2.75" (70 mm) |
| Self Leveling | ±5 degrees (horizontal) |
| Detection Accuracies | |
| Fine | ±1.0 mm |
| Medium | ±2.0 mm |
| Coarse | ±3.0 mm |
| Battery/Power | |
| Battery Life with Alkaline Batteries | 60 hours |
| Features | |
| Automatic Shut-Off | Yes |
| Display | LED |
| Drop Damage Protection | Yes |
| Bump Sensor (H.I./Out of Position Alert) | Yes |
| Protection Class | IP67 (dust proof and water-submersible) |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Dual Handles | Yes |
| One-Touch Commands | Yes |
| General | |
| Weight | 5.6 lbs. (2.56 kg.) |
| Dimensions | 8 3/8 × 9 3/8 × 7 9/16" (212 × 239 × 192 mm) |
| Accuracy | |
| Horizontal | 1/16" at 100 ft (±1.5 mm at 30 m) |
| Temperature | |
| Storage | –4 to 158 °F (–20 to 70 °C) |
| Operating | 14 to 122 °F (–10 to 50 °C) |
| Functions | |
| Automatic Leveling | Yes |
| Scanning Modes | 10 rps |
| Applications | |
| Checking/Setting Elevations | Yes |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Checking Elevations of Sub-Base and Sub-Grade | Yes |
| Checking Building Square & Area | Yes |
| Locating Finished Floor Levels | Yes |
| Grade | |
| Type | Manual, single slope |
